DPRK expanding submarine force

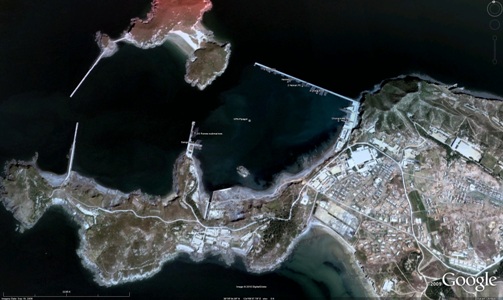

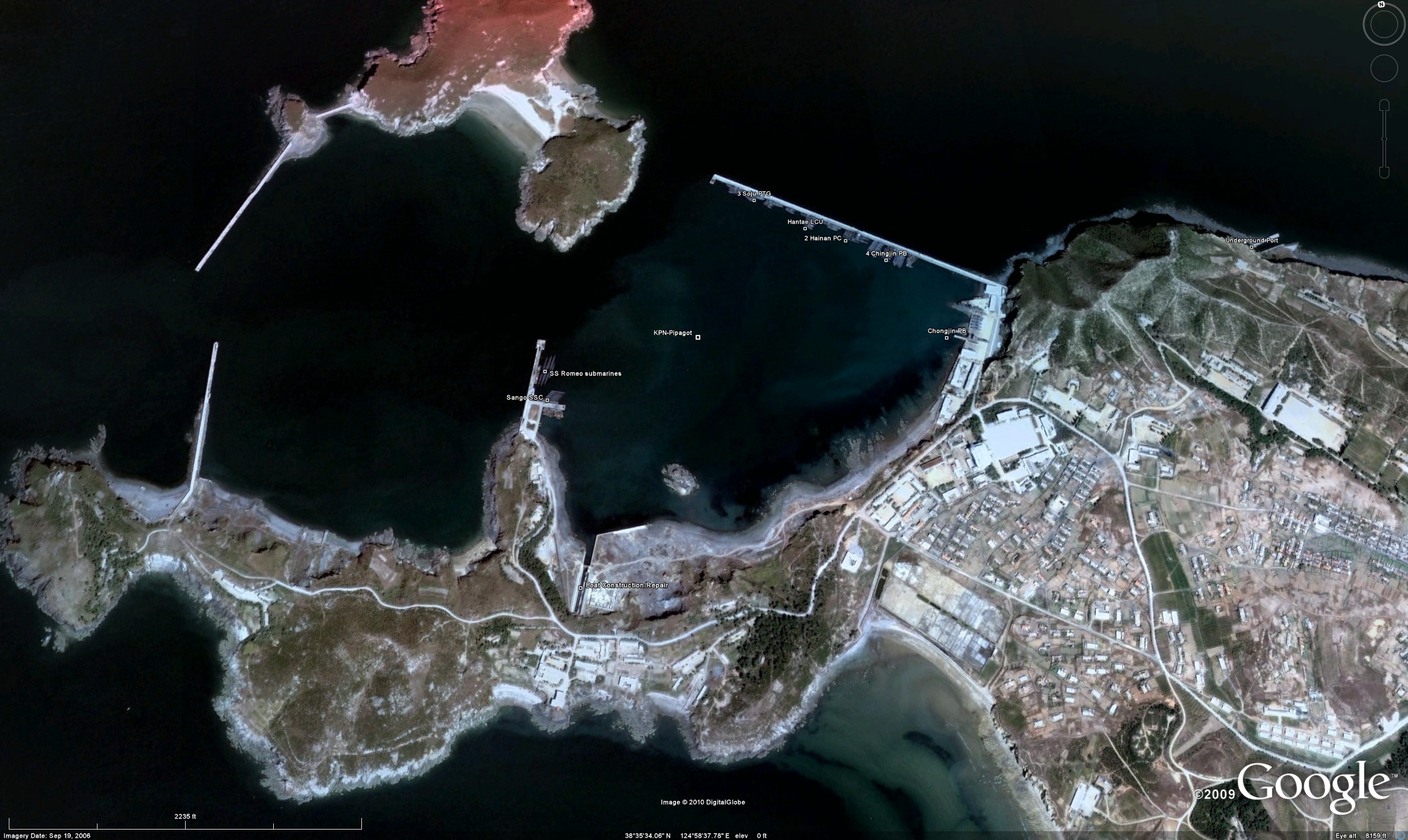

Pictured Above: Pipagot Naval Base  (Google Earth: 38°35’40.17″N, 124°58’38.49″E)

UPDATE (3/28/2011): According to Strategy Page:

North Korea has apparently been building an improved version of its Song (Shark) class mini-sub. The 250 ton Sang is actually a coastal sub modified for special operations. The original design is a 34 meter (105 feet) long boat with a snorkel and a top submerged speed of 17 kilometers an hour (or 13 kilometers an hour when at periscope depth using the snorkel to run the diesel engines). Top surface speed is 13 kilometers an hour. Max diving depth is 150 meters (465 feet) and the boat is designed to rest on the ocean bottom (useful when trying to avoid enemy search). There is a crew of 15, plus either six scuba swimmer commandos, or a dozen men who can go ashore in an inflatable boat. Some Songs have two or four torpedo tubes. Max endurance is about eight days. The new model is 39 meters (121 feet) long and is believed to have a max submerged speed of 27 kilometers an hour. Over 40 Songs have been built so far, and one was captured by South Korea when it ran aground in 1996. At least half a dozen are of the new model.

North Korea has a fleet of over 80 mini-subs, plus about 24 older Russian type conventional boats (based on late-World War II German designs, as adapted for Russian service as the Whiskey and Romeo class). China helped North Korea set up its own submarine building operation, which included building some of the large Romeo class subs. North Korea got the idea for minisubs from Russia, which has had them for decades. North Korea has developed several mini-sub designs, most of them available to anyone with the cash to pay.

The most popular mini-sub is the M100D, a 76 ton, 19 meter (58 foot) long boat that has a crew of four and can carry eight divers and their equipment. The North Koreans got the idea for the M100D when they bought the plans for a 25 ton Yugoslav mini-sub in the 1980s. Only four were built, apparently as experiments to develop a larger North Korean design. There are to be over 30 M100Ds, and they can be fitted with two torpedoes that are carried externally, but fired from inside the sub.

North Korea is believed to have fitted some of the Songs and M100Ds with acoustic tiles, to make them more difficult to detect by sonar. This technology was popular with the Russians, and that’s where the North Koreans were believed to have got the technology.

The most novel design is a submersible speedboat. This 13 meter (40 foot) boat looks like a speedboat, displaces ten tons and can carry up to eight people. It only submerges to a depth of about 3.2 meters (ten feet). Using a snorkel apparatus (a pipe type device to bring in air and expel diesel engine fumes), the boat can move underwater. In 1998, a South Korean destroyer sank one of these. A follow-on class displaced only five tons, and could carry six people (including one or two to run the boat). At least eight of these were believed built.

The use of a North Korea midget sub to sink a South Korean corvette in March, 2010, forced the United States, and South Korea, to seriously confront the problems involved in finding these small subs in coastal waters. This is a difficult task, because the target is small, silent (moving using battery power) and in a complex underwater landscape, that makes sonar less effective.

There are some potential solutions. After the Cold War ended in 1991, the U.S. recognized that these coastal operations would become more common. So, in the 1990s, the U.S. developed the Advanced Deployable System (ADS) for detecting non-nuclear submarines in coastal waters. The ADS is portable, and can quickly be flown to where it is needed. ADS is believed to be in South Korea. ADS basically adapts the popular Cold War SOSUS system (many powerful listening devices surrounding the major oceans, and analyzing the noises to locate submarines) developed by the United States.

ADS consists of battery powered passive (they just listen) sensors that are battery powered and deployed by ship along the sea bottom in coastal waters. A fiber optic cable goes from the sensors (which look like a thick cable) back to shore, where a trailer containing computers and other electronics, and the ADS operators, runs the system. ADS has done well in tests, but it has never faced the North Korean mini-subs.

ORIGINAL POST (3/22/2011): According to the Choson Ilbo:

North Korea is building up its submarine force, deploying new Shark-class K-300 submarines with better performance, a longer body and higher underwater speed than the old model which infiltrated South Korean waters in 1996.

A South Korean government official said Sunday, “We’ve confirmed U.S. satellite images and other intelligence that the North has been building and deploying new Shark-class submarines for a few years now.

They’re about 5 m longer than the old 34 m-long model and capable of traveling submerged more than 10 km/h faster.”

The North has about 70 submarines and submersibles. The Shark class, which accounts for about 40 of them, is its main submarine force.

Below are additional stories about the DPRK’s submarine fleet and navy:

Still Waters Run Deep

DPRK’s midget subs torpedo equipped

DPRK naval bases near Baengnyong Island

KPN submarine bases in the East Sea

North Korea supplied submarines to Iran

Bermudez on the North Korean Navy

NKeconWatch Military resources page
